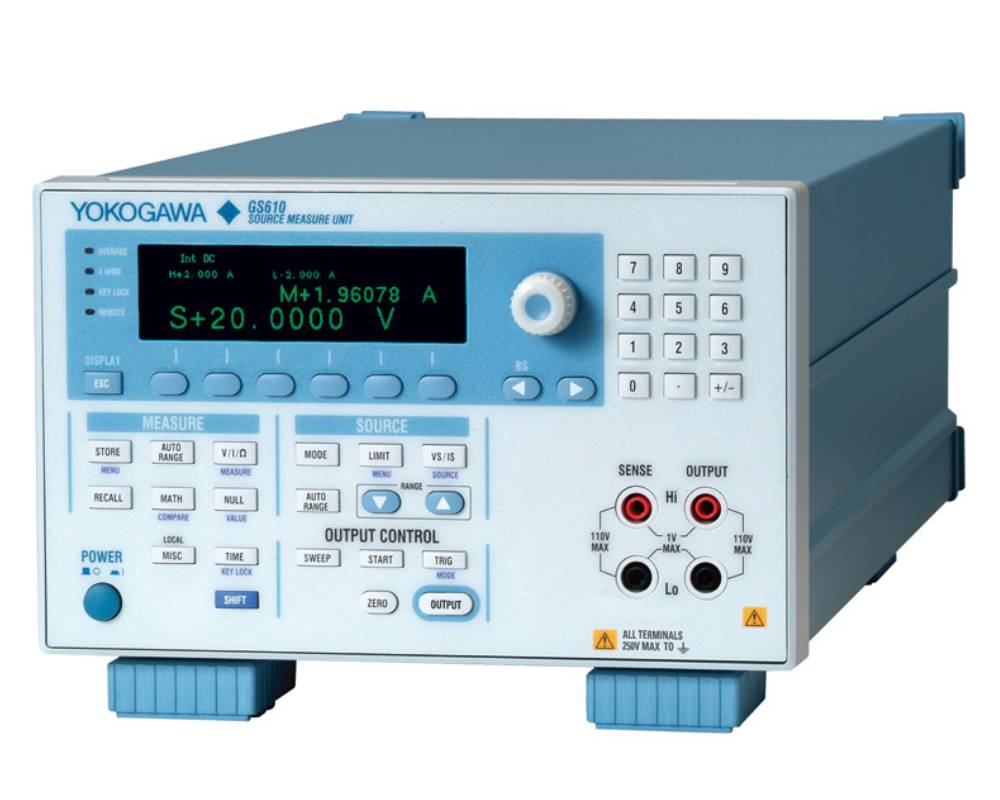

GS610 Source Measure Unit

A Source Measurement Unit (SMU) is a flexible test instrument which is capable of both sourcing and measuring voltage and/or current at the same time.

The GS610 is a highly accurate and highly functional programmable voltage/current source that incorporates voltage/current generation and measurement functions. The maximum output voltage and current are 110 V and 3.2 A, respectively. Evaluation of over a wide range of basic electrical characteristics is possible because the GS610 can operate as a current source or a current sink.

GS820 Multi Channel Source Measure Unit
  • Yokogawa source measure unit GS820
  • Precision SMU quick response for automated testing
  • High-speed communication improves productivity
  • Customizable to enable any test

IThe GS820 Multi-Channel Source Meter comes in 18-volt and 50-volt models for testing LED lighting, measuring drain current, and more. It has two isolated analog channels, each with a constant voltage source, constant current source, voltmeter, and ammeter. The Yokogawa source measure unit, GS820 offers two sweep functions, PC connectivity via USB, and expansion up to 10 channels.

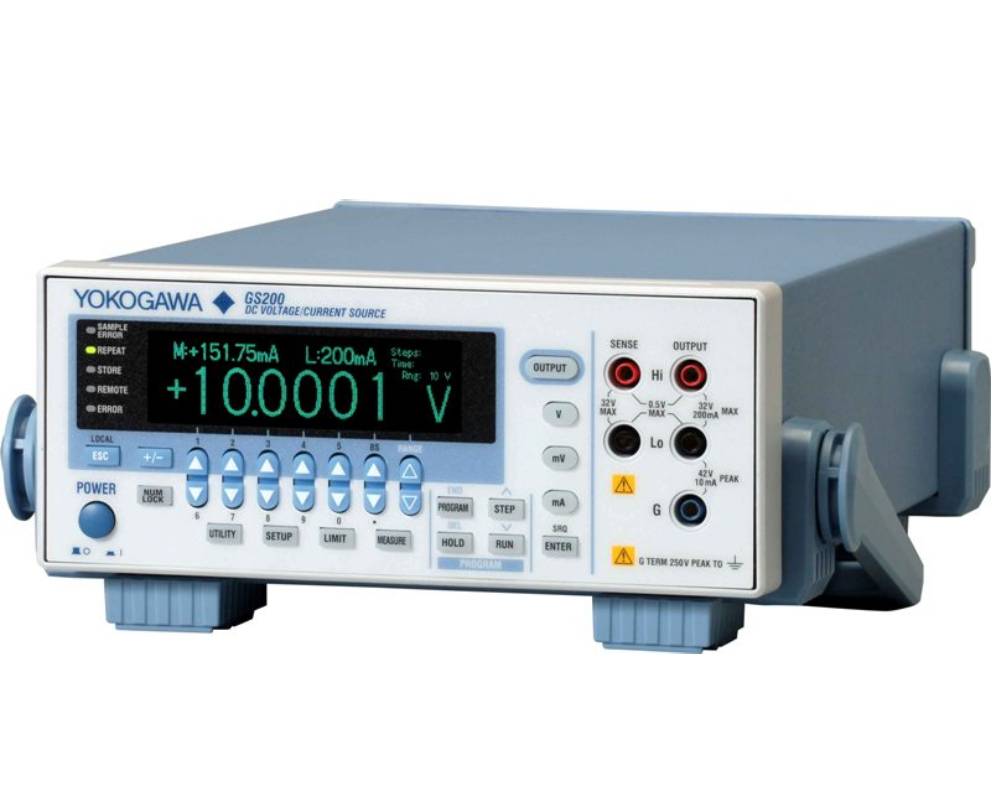

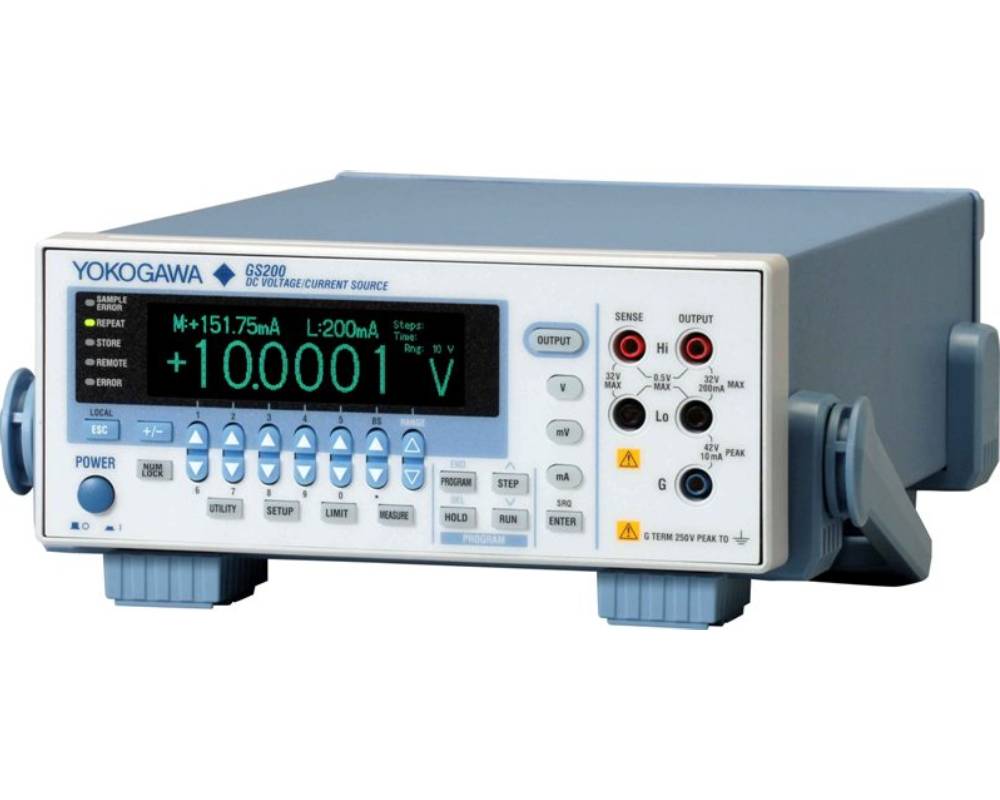

GS200 DC Voltage / Current Source

The GS200 is a low voltage/current DC source with high accuracy, high stability, and high resolution.

The GS200 is a low voltage/current DC source with high accuracy, high stability, and high resolution. With its excellent traceability, stability, and 5 1/2-digit resolution, the GS200 generates extremely low-noise DC voltage and current signals that are required for many applications. Additionally, the optional monitoring feature turns the GS200 into a voltage and current measuring instrument.
