Yokogawa digital oscilloscopes combine touchscreen responsiveness, low residual noise, and extensive automotive & industrial serial bus analysis to maximize engineering productivity.
Productivity at Your Fingertips with 500 μV/div Sensitivity

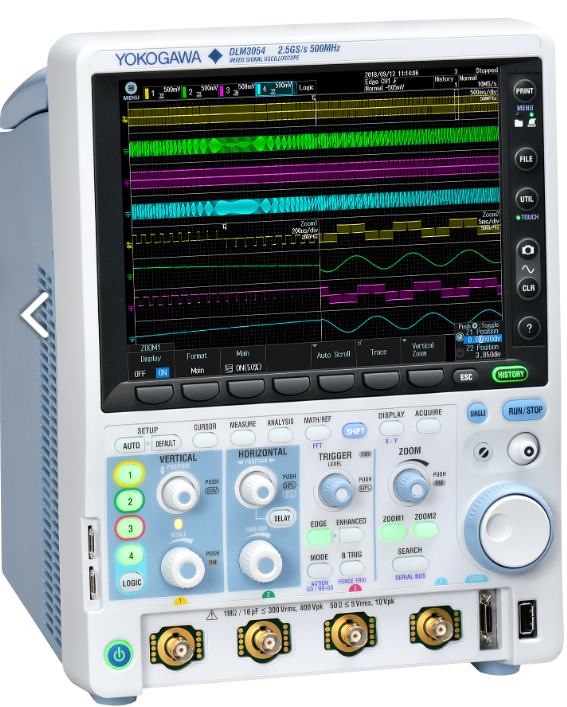

The DLM3000 builds on Yokogawa's oscilloscope legacy with features that focus on quality, flexibility, and usability to increase users' productivity and meet the advanced needs of today's mechatronics designs. Integrating touchscreen operation, solid-state storage, and high-speed signal processing, the DLM3000 enhances productivity by providing clean signals, extensive processing, and ease of operation.
Features lower residual noise, extensive voltage range options down to 500 μV/div, and 15 real-time lowpass filters to ensure absolute signal fidelity.
Configurable channel counts and deep memory combined with optional Power Supply Analysis and serial bus decoding (including major automotive buses).
Touchscreen interface seamlessly integrated with traditional tactile controls, standard GbE & USB 3.0, and optional 60 GB SSD for effortless data management.
Observe fine details captured by the completely redesigned analog front end, offering lower volts-per-division settings down to 500 μV/div and lower residual noise. Select from 15 real-time lowpass filters to reduce noise displayed on-screen and stored in memory.
1-Button Digital Logic Conversion: Four-channel models include a selectable 8-bit digital input. Push a single button to convert Channel 4 into an 8-bit digital logic channel, creating a total 11-channel mixed-signal oscilloscope (3 analog + 8 logic).
Bandwidth & Memory: Choose from 200, 350, or 500 MHz bandwidth in 2-channel or 4-channel configurations. Standard memory includes 12.5 Mpoints (repeat) / 125 Mpoints (single), expandable up to 50 M / 500 Mpoints.
Gigabit Ethernet, USB 3.0 & 60GB SSD: Fast internal communication rates enable higher memory and faster update rates. Store thousands of waveforms on the optional internal 60 GB SSD without requiring an external PC.
A completely digital triggering system enables lower timing jitter and improved vertical level accuracy for precise response across complex signals:

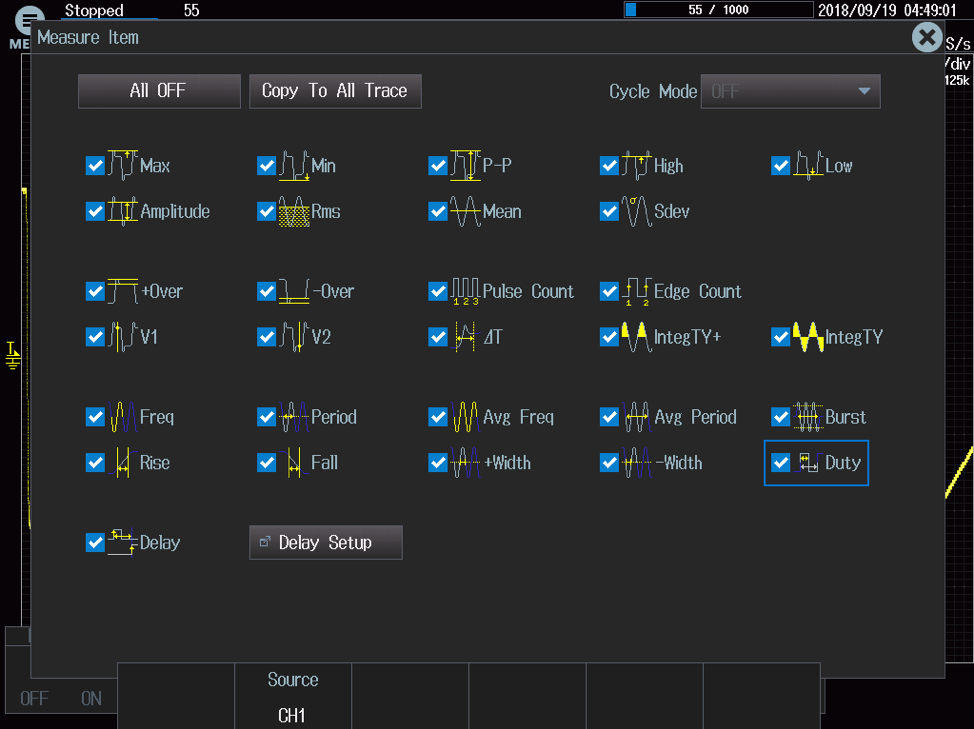

29 Waveform Parameters: Standard parameter measurements included out of the box.
30 Simultaneous Measurements: Automated measurement of up to 30 parameters simultaneously provides deep signal insight directly inside the instrument.
Power Supply & Serial Analysis Options: Perform power loss, switching analysis, and automotive serial bus decoding natively without external PC software.
Switch seamlessly between tapping, pinching, dragging the responsive touchscreen or using precise, tactile hardware knobs and buttons. Personalize the interaction that works best for your measurement workflow.
Taking You Beyond 8 Channels with DLMsync 16-Channel Linking

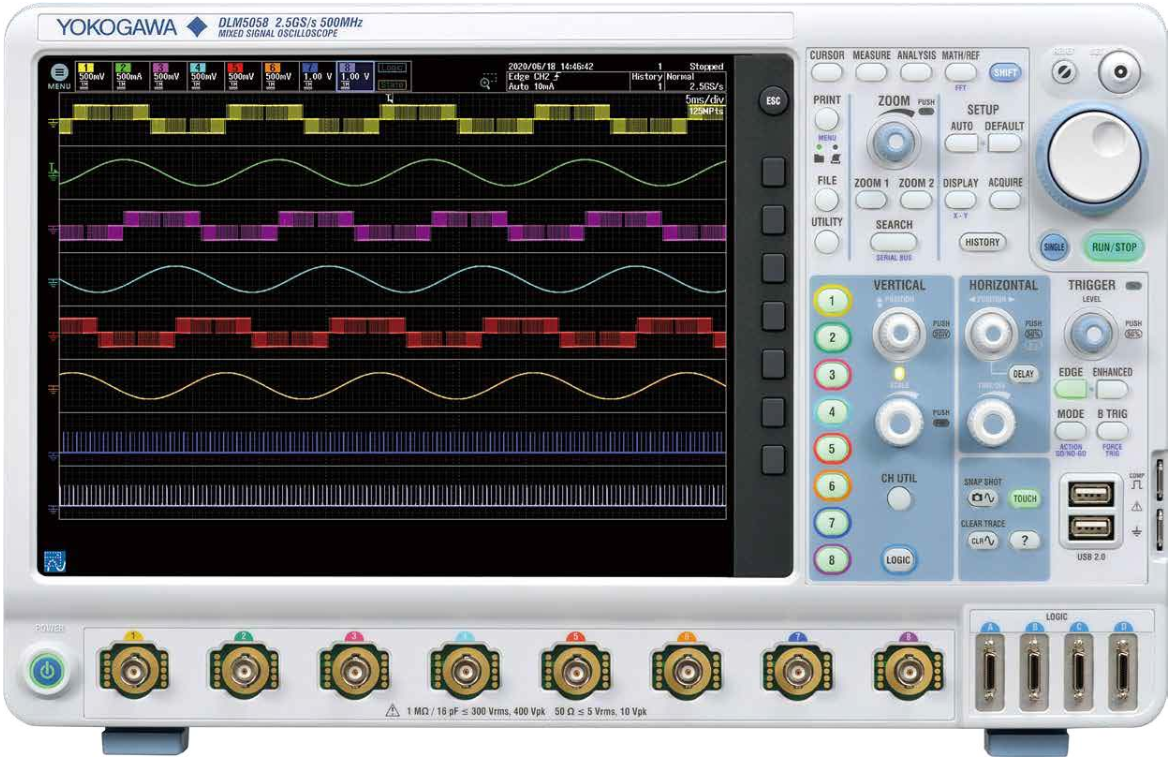

Built on Yokogawa's experience as creator of the world’s first 8 channel oscilloscope, and with over 100 years of industry experience, the DLM5000 takes you beyond 8 channels. Adaptability is a key requirement during the development of high-performance and intelligent power-semiconductor technologies and mechatronics applied in modern electric vehicles, motor controls, and energy efficient electronic designs. Combining a large, highly responsive touchscreen and a traditional oscilloscope panel, the 4-to-8 channel DLM5000 mixed signal oscilloscope allows users to easily navigate through a wealth of analysis features at the touch of their fingertips.

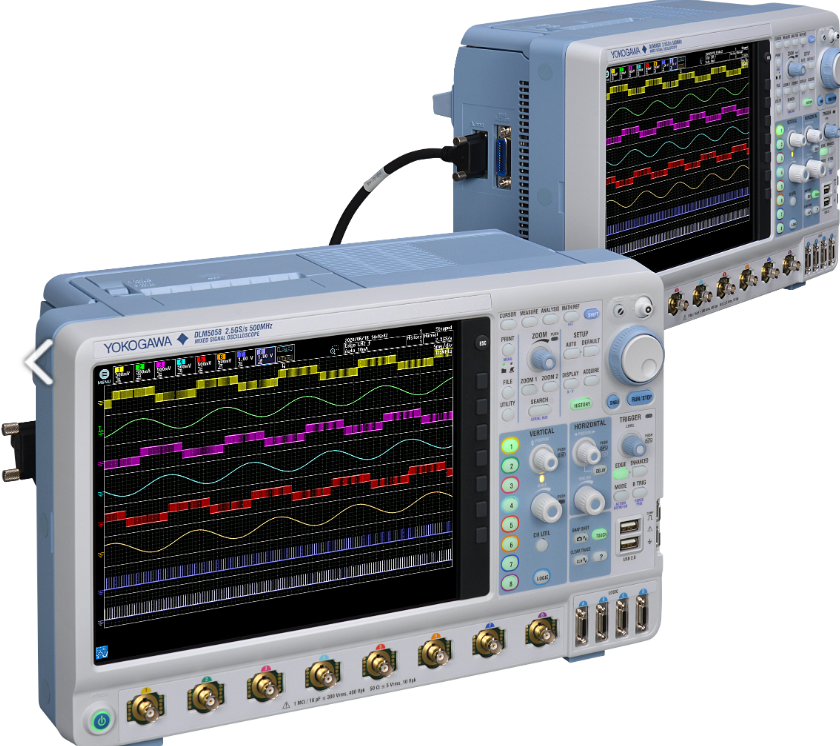

Connect two DLM5000 mainframes with a dedicated DLMsync cable to synchronize sampling clocks, triggers, and record starts. This extends your measurement capabilities to 16 analog channels and up to 64 logic channels simultaneously — ideal for complex 3-phase dual-motor drives, inverter testing, and EV battery management system (BMS) evaluation.
